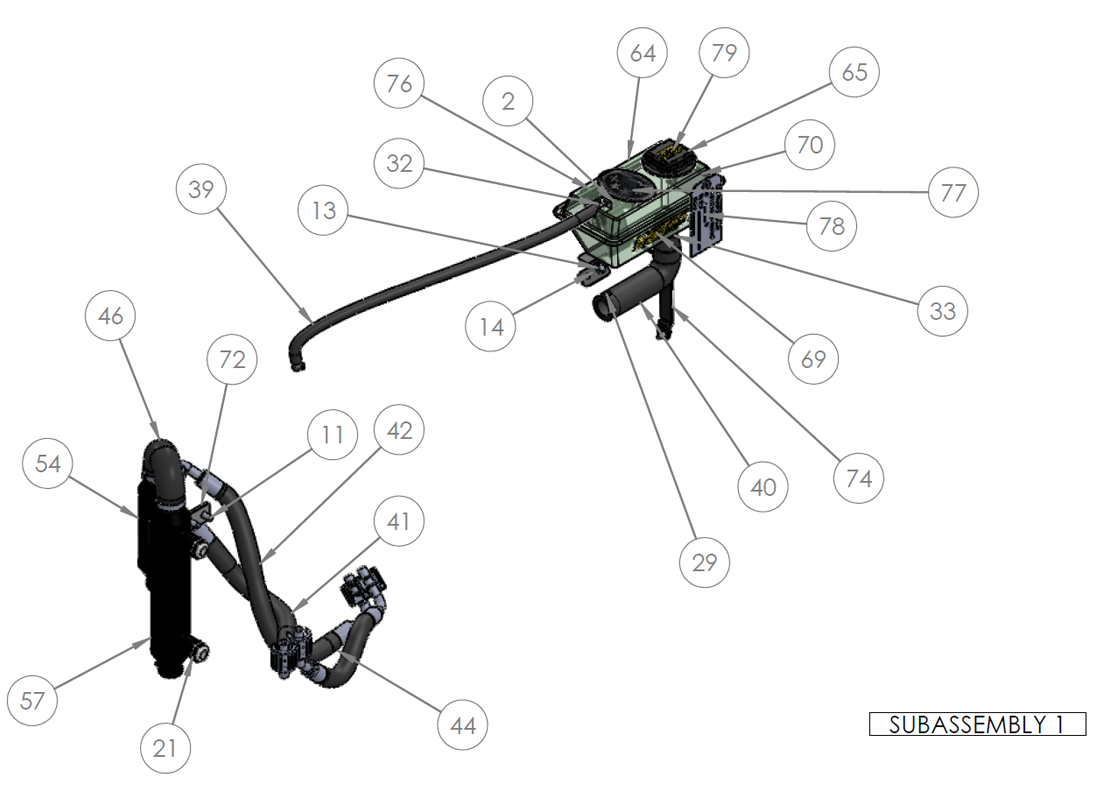

SUBASSEMBLY 1

SUBASSEMBLY 1
Number Reference   Name Price
21 1712159 Indmar FITTING 41671 MB x 41671 (1/2 MB x 1/2)JIFFY non Indmar FITTING 41671 MB x 41671 (1/2 MB x 1/2)JIFFY non
US$11.60
46 1956014 Indmar HOSE FORMED (1.25") FORD UPPER (OIL2TRANS) COOLER Indmar HOSE FORMED (1.25") FORD UPPER (OIL2TRANS) COOLER
US$23.81
57 1976115 Indmar COOLER 9Inch STD w/ORING THREAD Indmar COOLER 9Inch STD w/ORING THREAD
US$209.16
54 1976114 Indmar COOLER 5Inch STD w/ORING THREAD Indmar COOLER 5Inch STD w/ORING THREAD
US$134.59
72 1096020 Indmar BRACKET (COOLERS) RAW WATER A 6.2 FORD Indmar BRACKET (COOLERS) RAW WATER A 6.2 FORD Call for Price
76 1097302 MOUNT CLIP TANK HIGH FILL F/W 6.2 MOUNT CLIP TANK HIGH FILL F/W 6.2
US$5.00
64 1977213 TANK HIGH FILL F/W 6.OL TANK HIGH FILL F/W 6.OL
US$70.00
65 1977214 Indmar CAP TANK HIGH FILL F/W 6.OL/6.2L Indmar CAP TANK HIGH FILL F/W 6.OL/6.2L
US$130.25
29 1846148 CLAMP HOSE OETIKER 1" HOSE CLAMP HOSE OETIKER 1" HOSE
US$5.36
2 1676031Q NUT HEX 10-24 NYLON LOCK SP25 NUT HEX 10-24 NYLON LOCK SP25 Call for Price
13 1677122Q SCREW FH M6 x 1.00 x 16MM SP 25 SCREW FH M6 x 1.00 x 16MM SP 25
US$1.86
14 1677132Q NUT CLIP M6, 1MM PITCH NUT CLIP M6, 1MM PITCH Call for Price
32 1846151 CLAMP HOSE OETIKER 5/16 HOSE (15.7) CLAMP HOSE OETIKER 5/16 HOSE (15.7)
US$1.34
33 1846155 CLAMP HOSE OETIKER 3/4" HOSE (30.1) CLAMP HOSE OETIKER 3/4" HOSE (30.1)
US$1.14
42 1956178-220S HOSE ASM 22" LOCKING SLEEVED HOSE ASM 22" LOCKING SLEEVED
US$148.30
69 1096358 DECAL ENGINE MAINTENANCE DECAL ENGINE MAINTENANCE
US$0.65
70 1096521 DECAL ANTIFREEZE FILL DECAL ANTIFREEZE FILL
US$0.82
74 1096035 BRACKET FILL BOTTLE FORD BRACKET FILL BOTTLE FORD
US$27.16
77 1003110 DECAL FOUR STAR EPA DECAL FOUR STAR EPA
US$125.00
78 1003143 HANG TAG ANTIFREEZE FREEZE PROTECTION HANG TAG ANTIFREEZE FREEZE PROTECTION Call for Price
79 1003175 DECAL ANTIFREEZE INDMAR DECAL ANTIFREEZE INDMAR
US$0.43
40 1956158 HOSE 1" X 3/4" HIGH FILL FORMED HOSE 1" X 3/4" HIGH FILL FORMED
US$21.28
39 1956156-270 HOSE 5/16" x 27" WATER HOSE FORD HOSE 5/16" x 27" WATER HOSE FORD Call for Price
41 1956178-180S HOSE ASM, 18" W/SLEEVE LOCKING 90DEG HOSE ASM, 18" W/SLEEVE LOCKING 90DEG
US$142.76
44 1956170-120S HOSE ASM, 12" W/SLEEVE LOCKING 45DEG FITTING HOSE ASM, 12" W/SLEEVE LOCKING 45DEG FITTING Call for Price
